Description

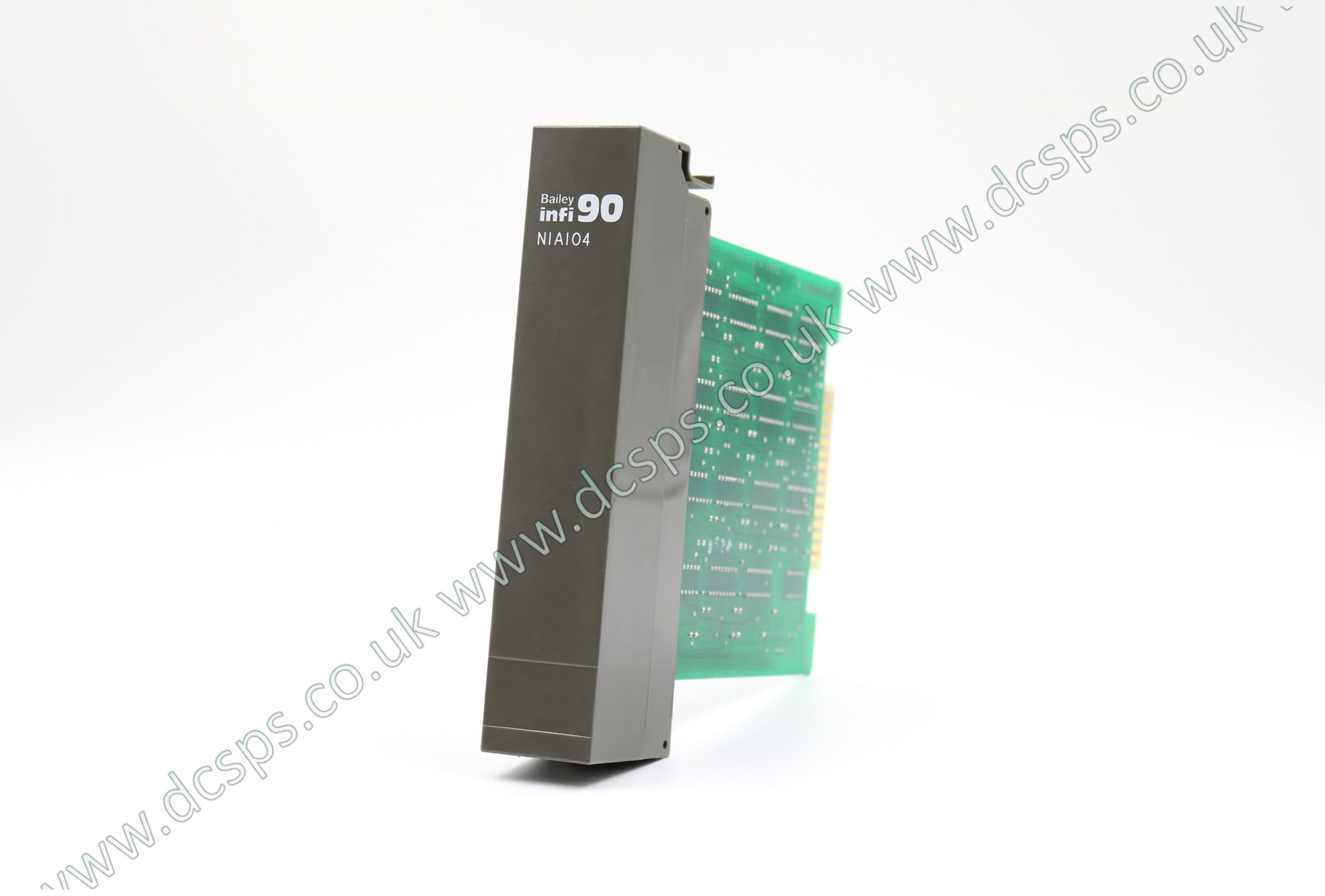

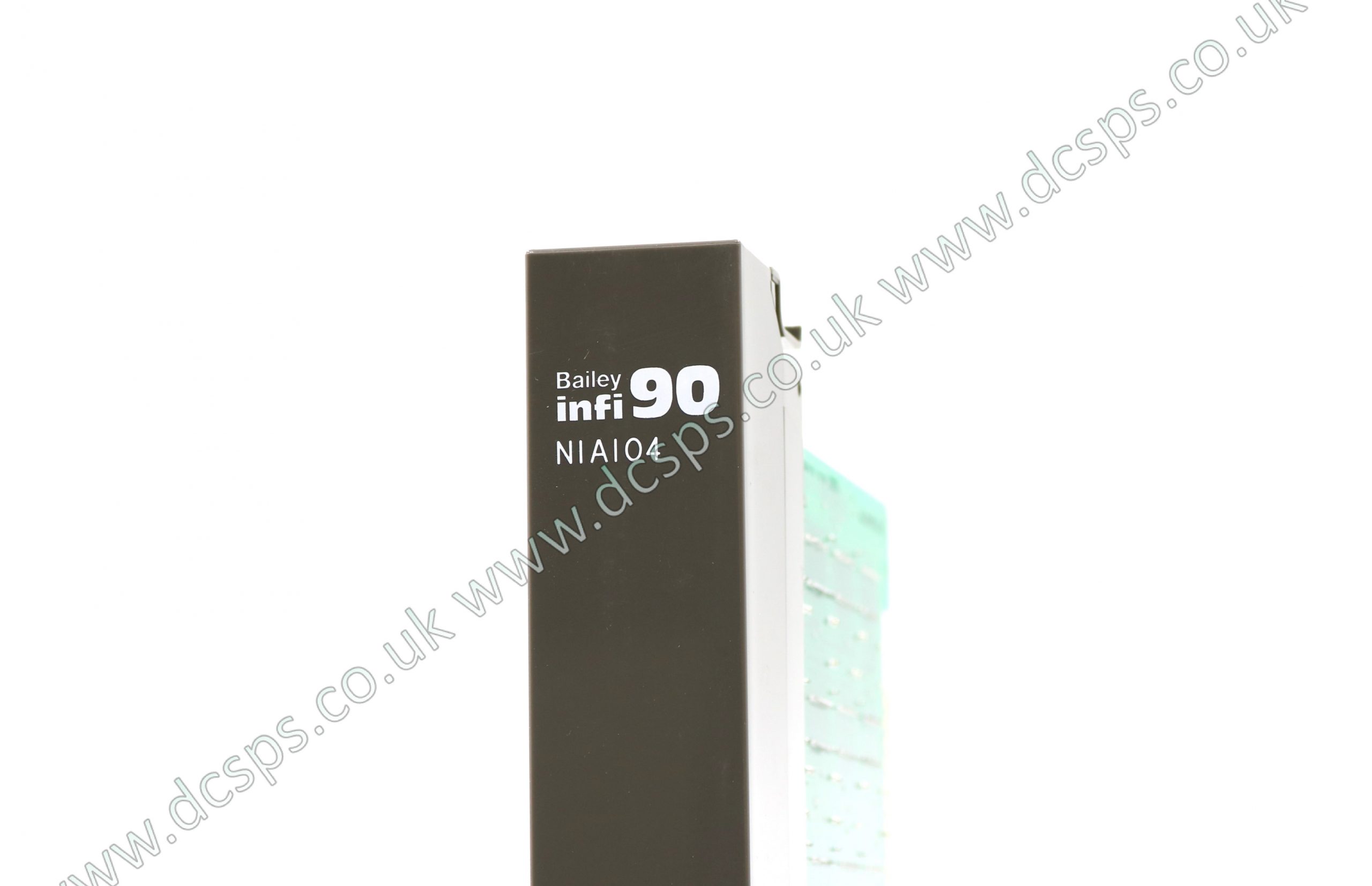

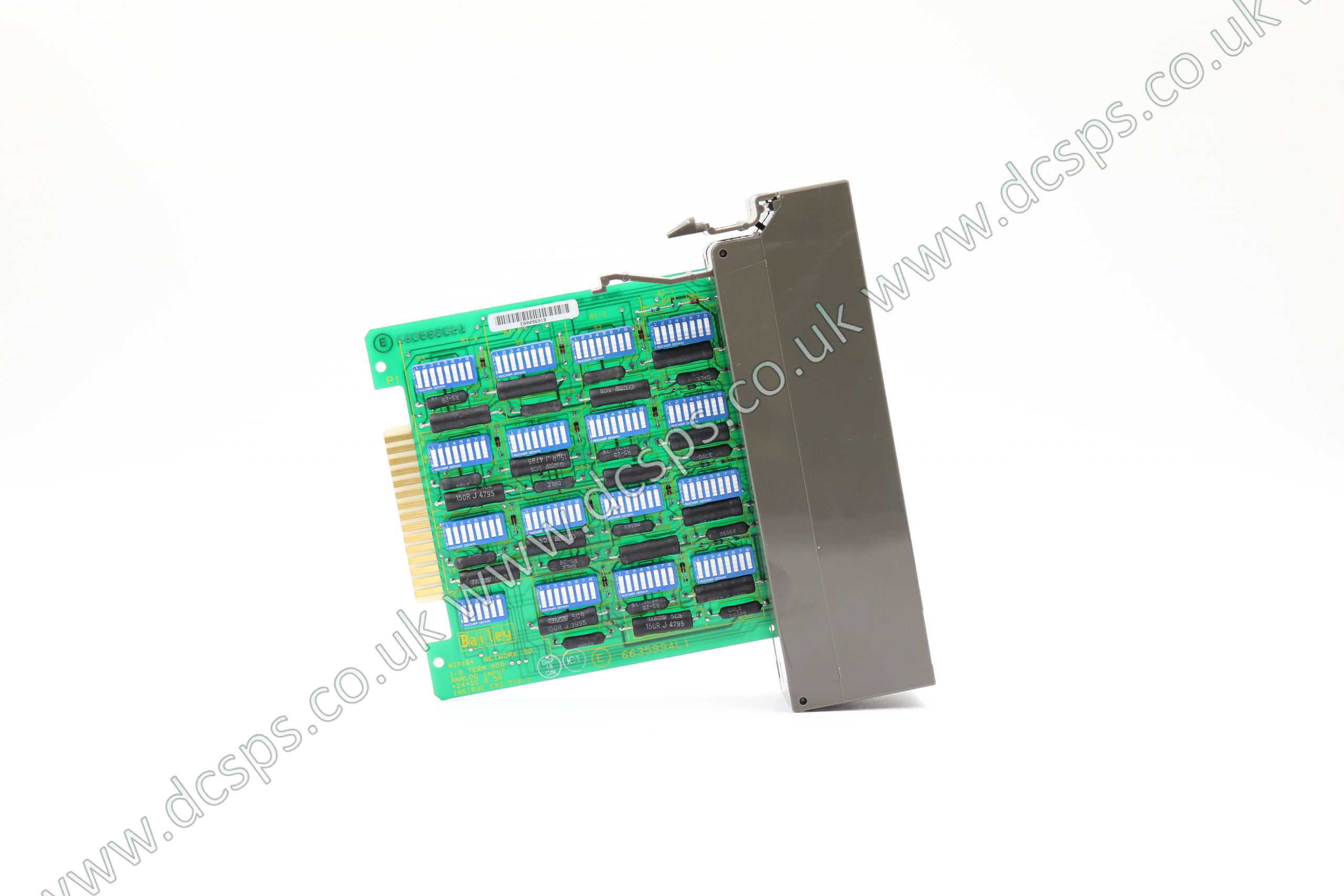

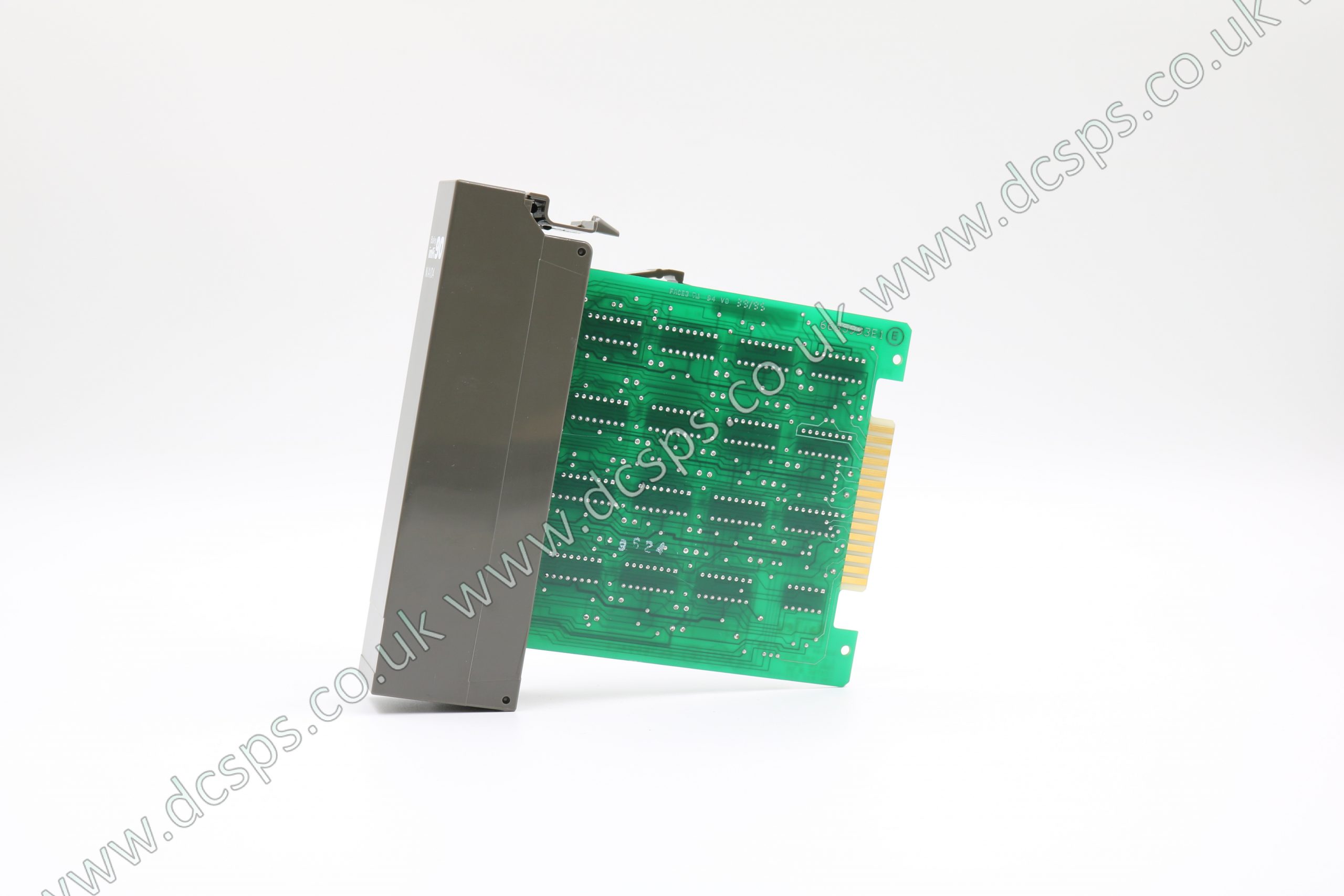

The ABB NIAI04 termination module interfaces the IMASM01 (Analog Input Module) and field equipment, such as transmitters. It also accommodates (via eight position dipswitches) different types of analog inputs: system or externally powered 4-20 mA current loops and a single-ended or differential voltage inputs. The ABB NIAI04 inputs 15 channels of analog signals. It connects an Analog Input Module to field equipment and Bailey smart transmitters. The signals pass through slave modules to the Multi-Function Processor , Analog Master Module or Network 90 Multi-Function Controllers and Analog Master Modules.
