Description

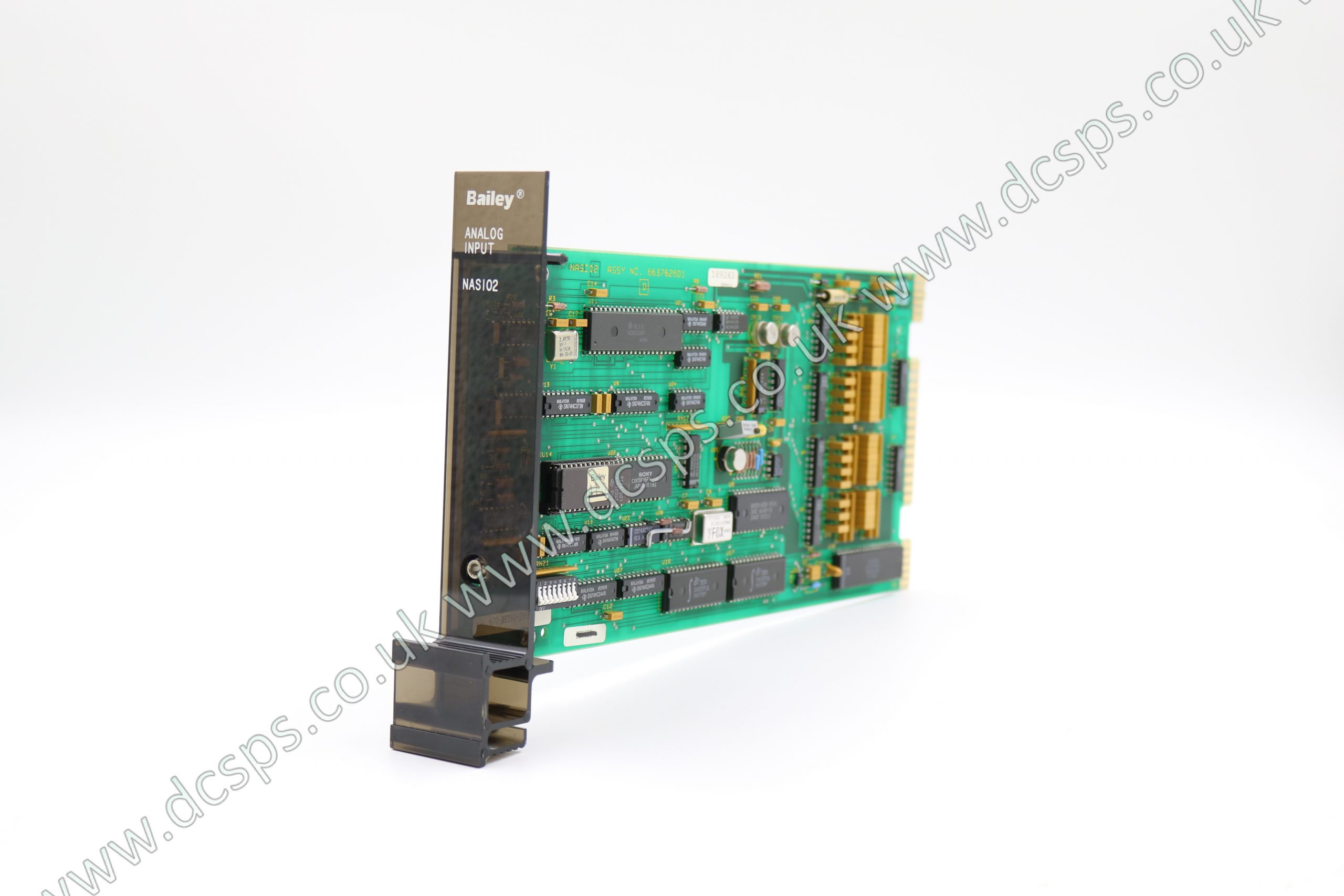

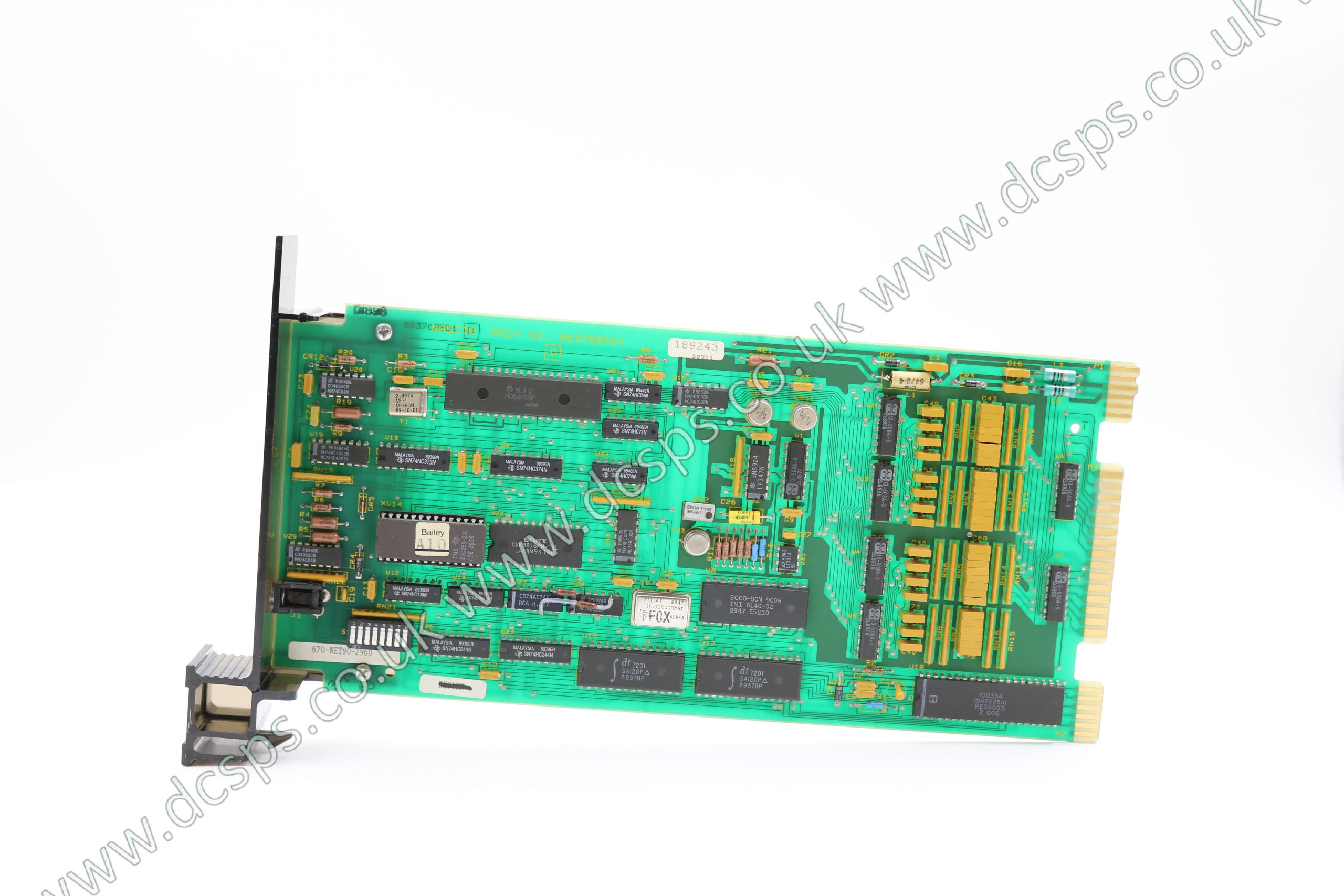

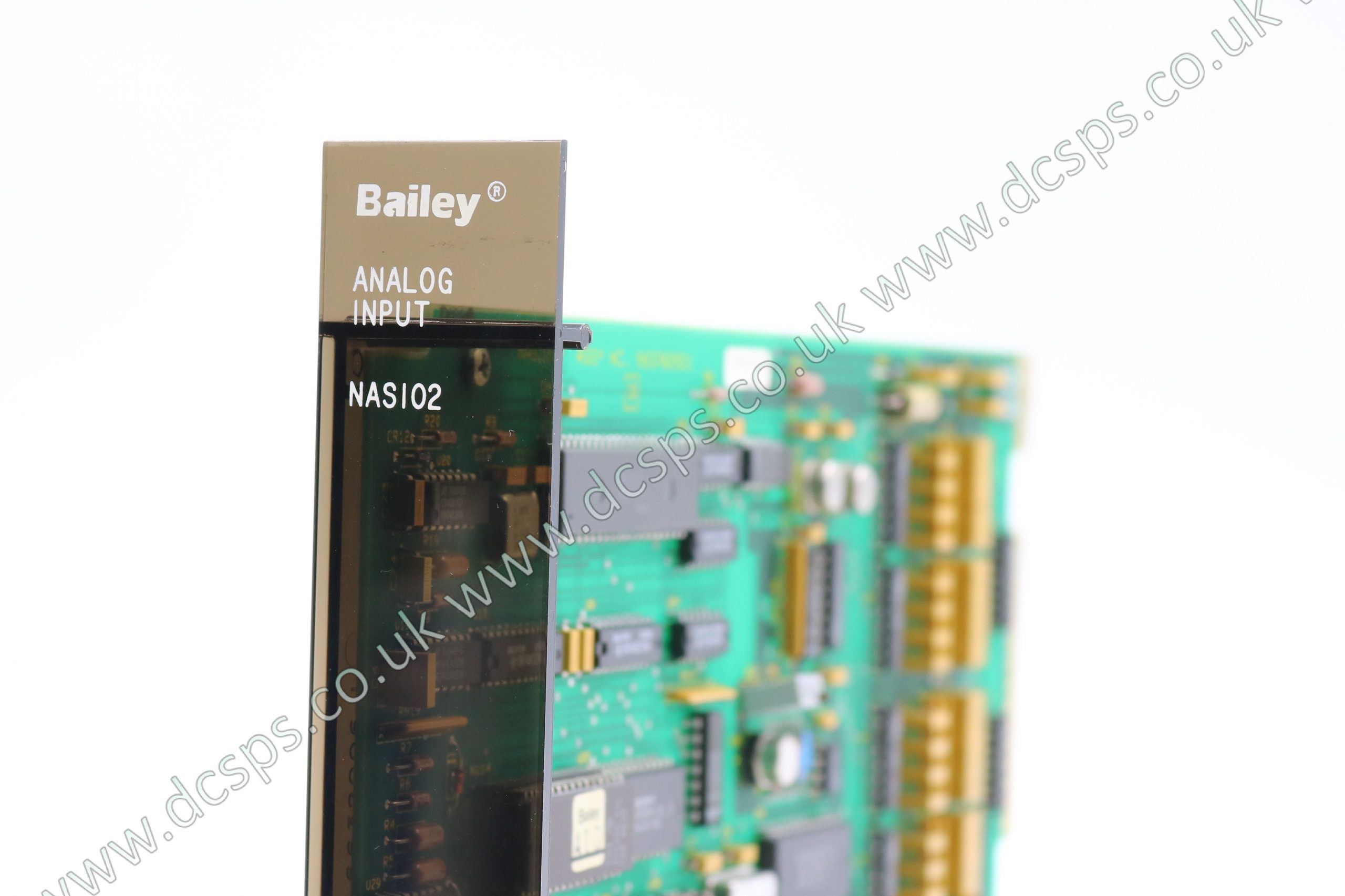

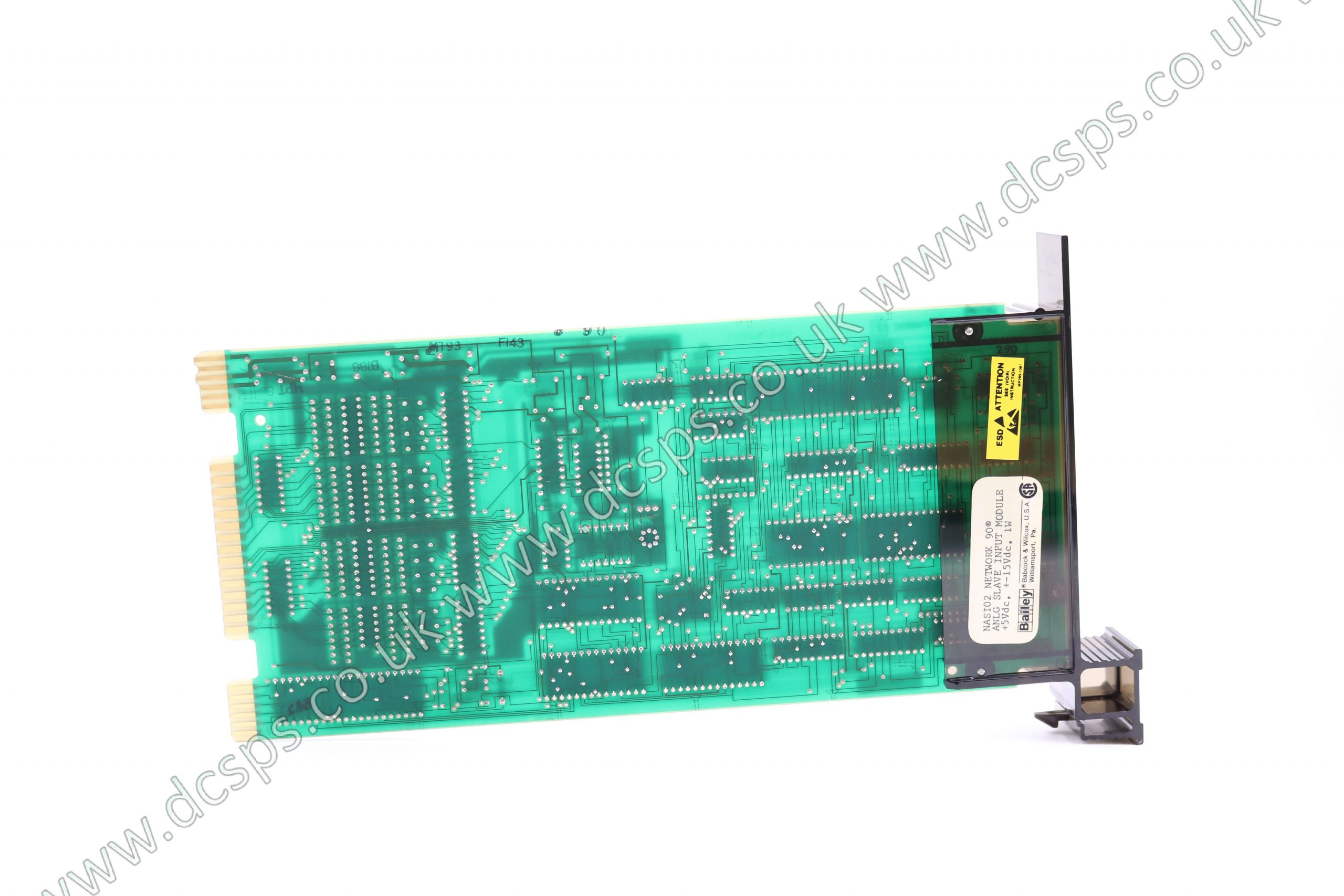

The ABB NASI02 Analog Input Module provides fifteen analog inputs to the Multi-Function Controller or Processor for process field equipment and Bailey Smart Transmitters. It performs analog to digital (A/D) conversions on each input channel and can communicate to the Smart Transmitters for changing operating parameters and calibrating transmitter outputs. Anlog Input Slave – Interfaces 15 analog input signals from field equipment and Bailey Smart Transmitters to the MFC’s. Each channel is able to be configured independently for the following ranges – 4 to 20 mA, 1 to 5 VDC, 0 to 1 VDC, 0 to 5 VDC, 0 to 10 VDC, -10 to 10 VDC. A handheld STT02 can be connected via an adapter jack on the slave faceplate to perform a set of transmitter commands.
