Description

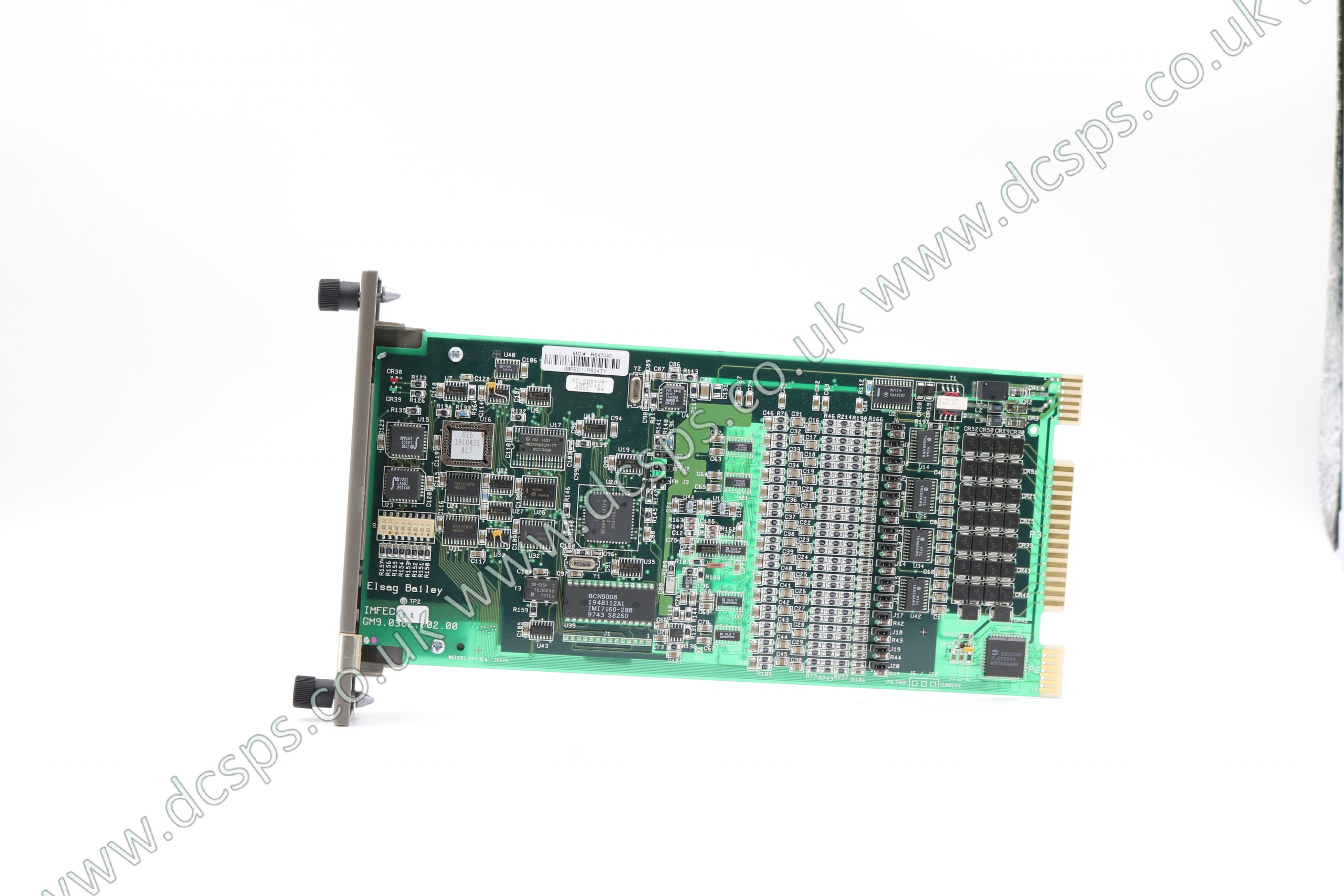

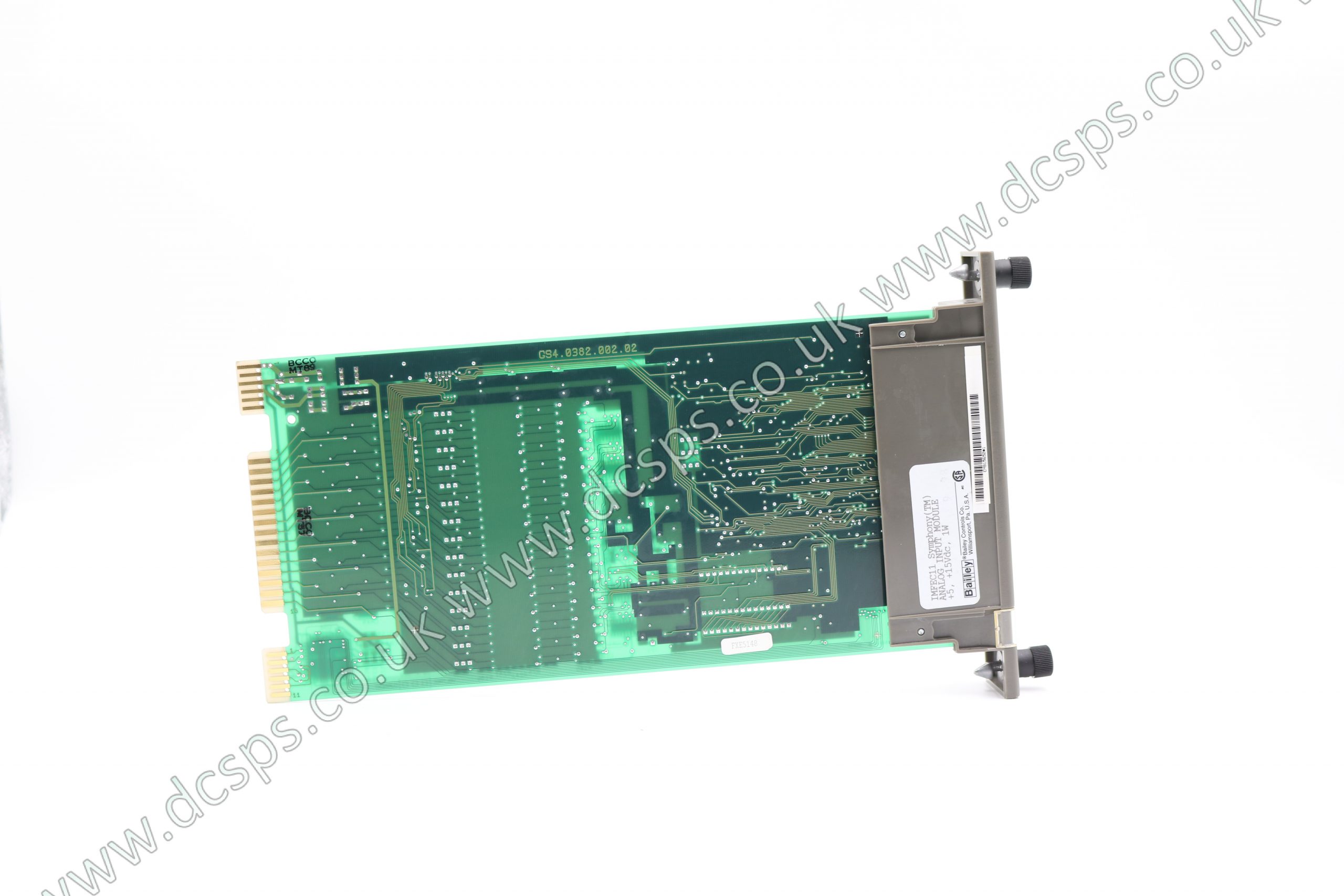

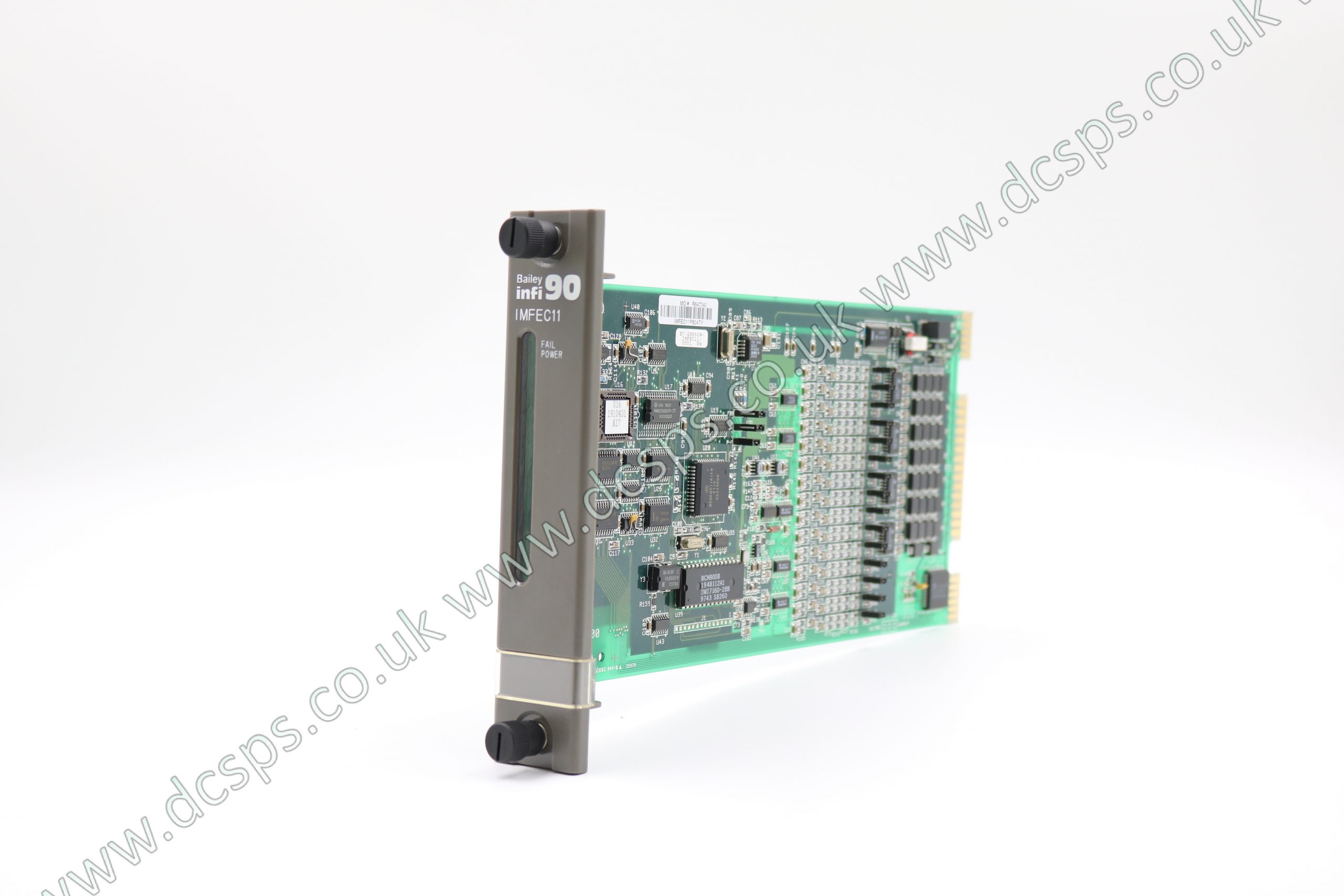

The Analog Input Module provides fifteen analog inputs to the Multi-Function Controller or Processor for process field equipment and Bailey Smart Transmitters. It performs analog to digital (A/D) conversions on each input channel and can communicate to the Smart Transmitters for changing operating parameters and calibrating transmitter outputs. The IMFEC11 module allows 15 channels of 4-20 mA and 1-5 V analog inputs while also offering FSK digital communications (point to point or multidrop bus). It can also be used to replace the IMFBS01 when used in FSK mode. The IMFEC11/12 can utilize the NTAI05, NIAI04, and the NTFB01 termination units. This module conforms to CE Mark.
